Bamboo Style Glazed Tile Roll Forming Machine 4-8m/Min High Strength
1. Main features of Glazed Tile roll forming machine
The advantages of Glazed Tile machine are as follows:
1. The machine produced tile with low cost, lightweight but high strength, short building period, and re-cycle use
2. Save material, no waste.
3. Easy operation, low maintenance cost
4. With Taiwan Quality, China Price.

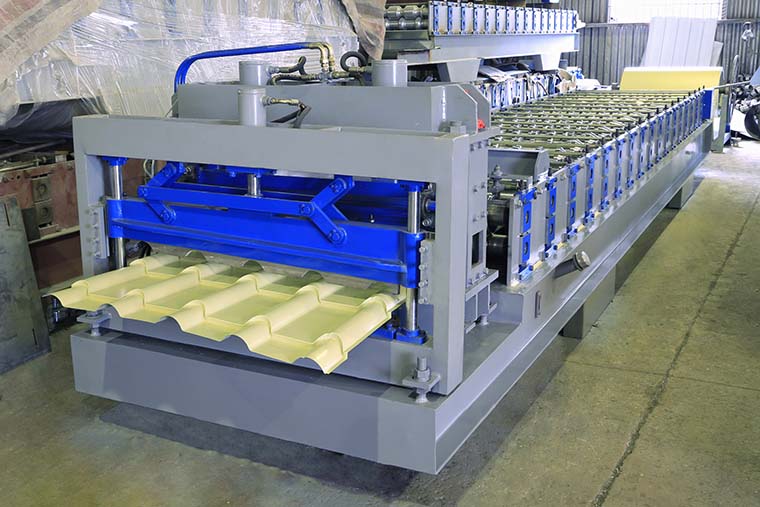

2.Detailed Images of YX35-925 Glazed Tile forming machine
Machine Parts
1) YX35-925 Glazed Tile roll forming machine pre-cutter
Brand: BMS Original: China
With feeding material guide.
2) YX35-925 Glazed Tile roll forming machine rollers
Brand: BMS Original: China
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with Hard-Chrome Coating for long working life
Body frame made from 350# H type steel by welding
3) YX35-925 Glazed Tile roll forming machine post cutter
Brand: BMS Original: China
Made by high-quality mould steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

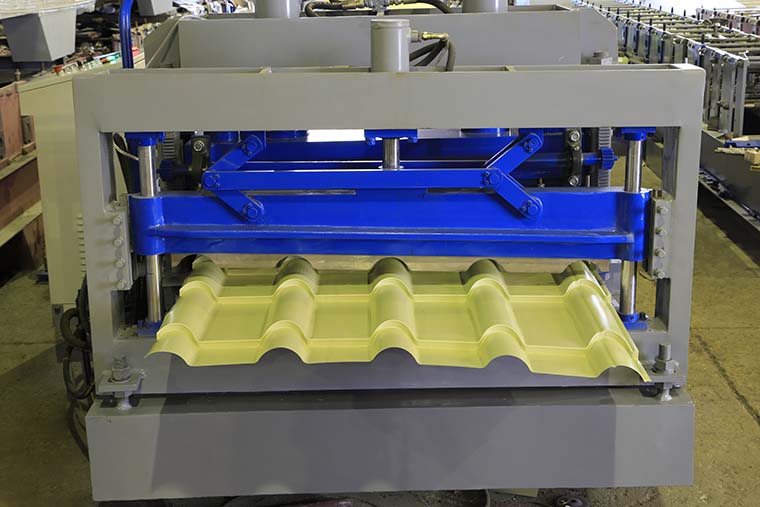

4) YX35-925 Glazed Tile roll forming machine punching mould
Brand: BMS Original: China

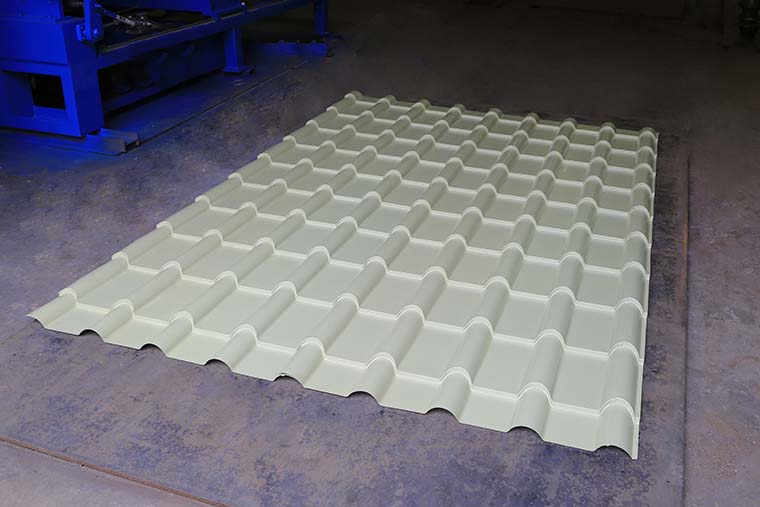

5) YX35-925 Glazed Tile roll forming machine product show
Brand: BMS Original: China
6) YX35-925 Glazed Tile roll forming machine decoiler
Brand: BMS Original: China
ManualDecoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton
With 6 tons hydraulic decoiler for option
7) YX35-925 Glazed Tile roll forming machine exit rack
Brand: BMS Original: China
Un-powered, one unit
Other detailes of YX35-925 Glazed Tile roll forming machine
Suitable for material with thickness 0.3-0.8mm
Shafts manufactured from 45#, shaft diameter=φ90/75mm, precision machined
Motor driving, Gear chain transmission, 20 steps to form.
Main motor=15KW, Frequency speed control. Forming speed of approx.12-15m/min
PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,
Inverter brand: Schneider Electric/Taiwan DELTA/SHILIN, Encoder brand: Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manual in English
After-sale service of Glazed Tile roll forming machine
1. The warranty of purlin Glazed Tile roll forming machine is 18months after the client receives the machine.
Within the 1.5years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories at extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export to more than 50 countries and regions, including Taiwan, the UK, France,
Ireland, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia,
UAE, Iran, Kuwait, Yemen, India, Pakistan, Singapore, Malaysia, Thailand, Indonesia, Philippines,
Vietnam, Myanmar, Brunei, South Africa, Zimbabwe, Mozambique, Zambia, Congo, Cameroon,
Sudan, Ethiopia, Nigeria, Guinea, Algeria, Libya and Egypt, Russia, etc.
