Product Description
YX25-810 Glazed Tile Roll Forming Machine
1. Main features of Glazed Tile roll forming machine
The advantages of Glazed Tile machine are as follows:
1. Low cost, lightweight but high strength, short building period, and re-cycle use
2. Save material, no waste.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range), help to save material
5. Optional Punch hole at any position of purlin web side and flange side
2. Detailed Images of YX25-810 Glazed Tile forming machine
Machine Parts

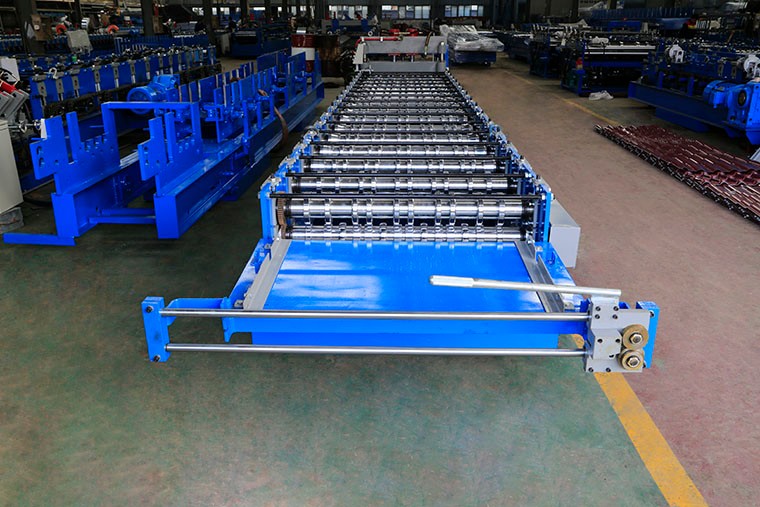

1) YX25-810 Glazed Tile machine pre-cutter
Brand: BMS Original: China
With feeding material guide.

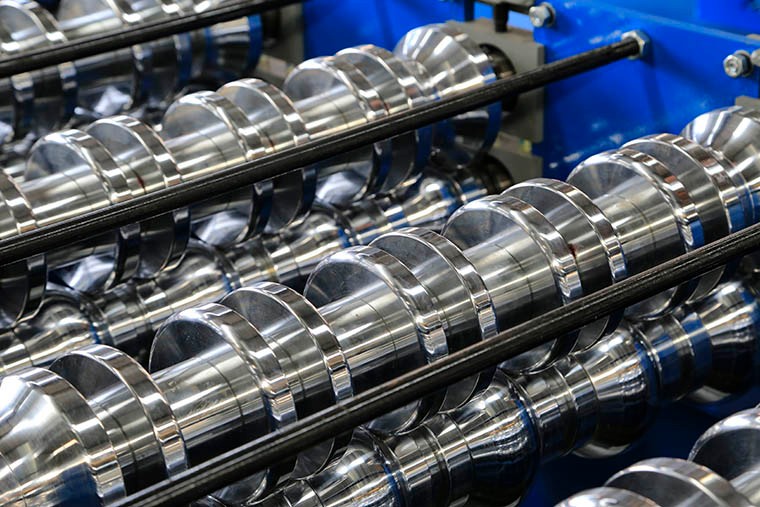

2) YX25-810 Glazed Tile machine rollers
Brand: BMS Original: China
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
Body frame made from 350# H type steel by welding

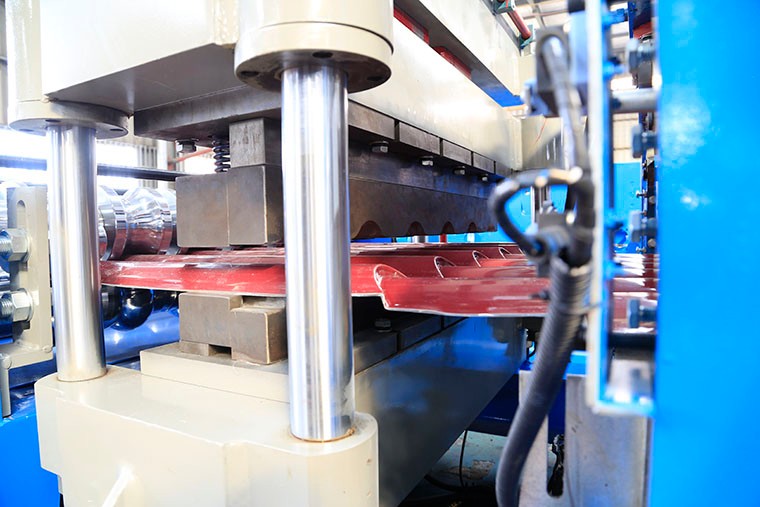

3) YX25-810 Glazed Tile machine punching mold
Brand: BMS Original: China

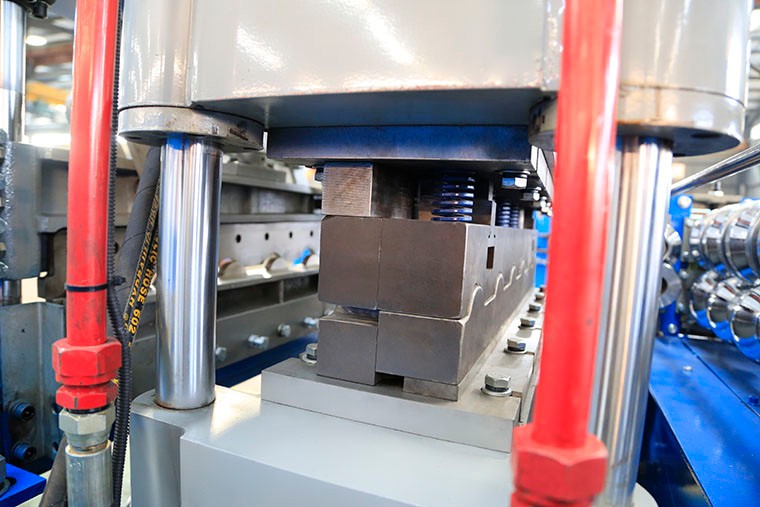

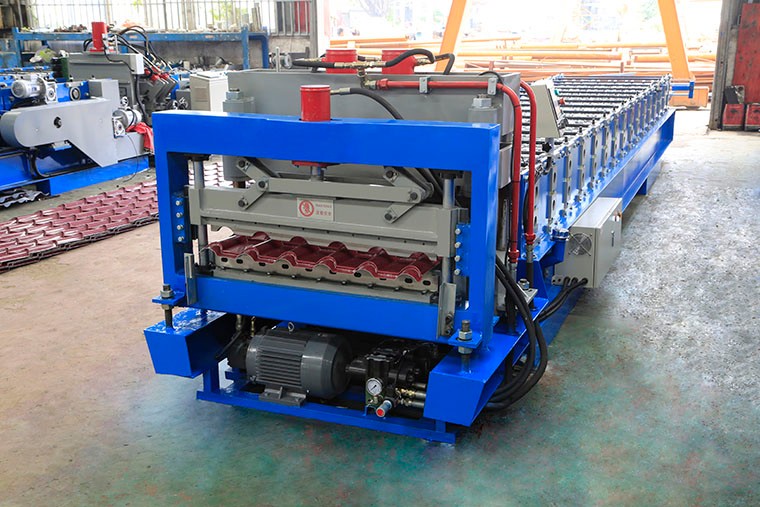

4) YX25-810 Glazed Tile machine post cutter
Brand: BMS Original: China
Made by high-quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

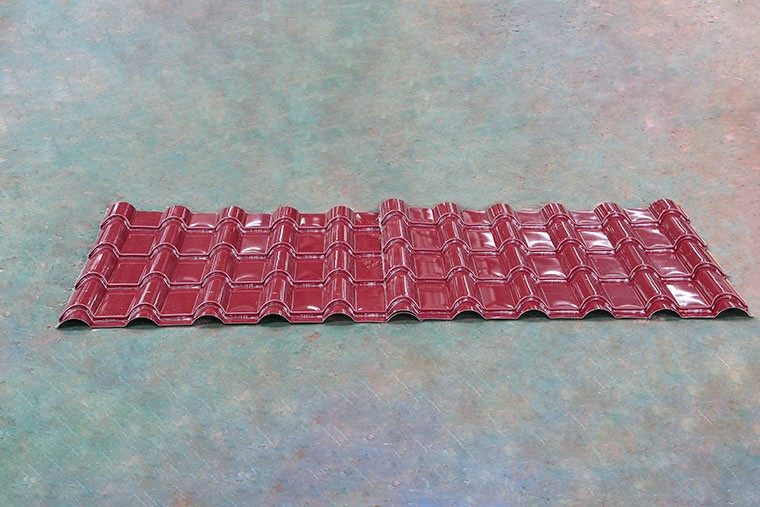

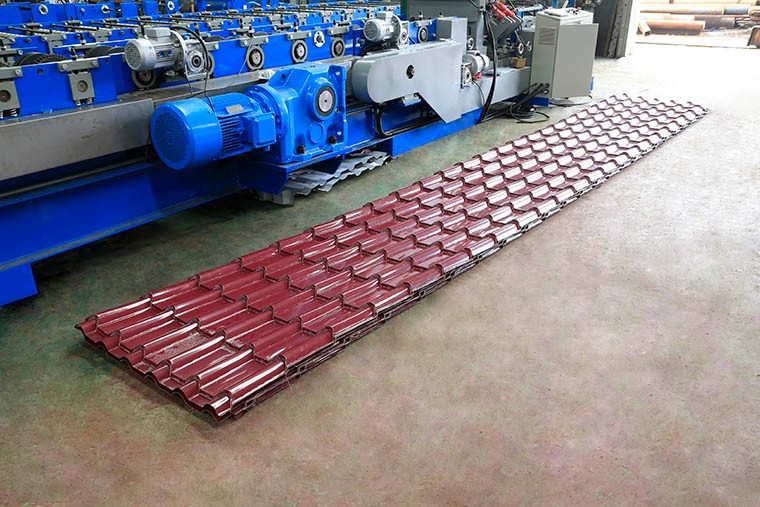

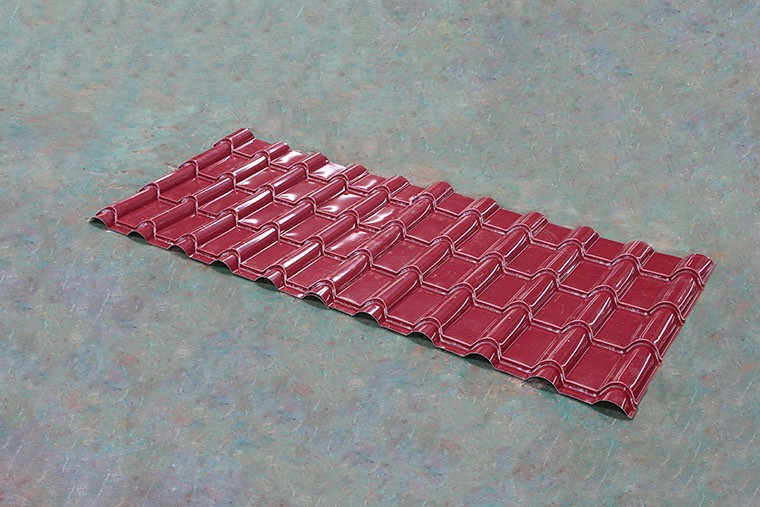

5) YX25-810 Glazed Tile machine product show
Brand: BMS Original: China
5) YX25-810 Glazed Tile machine decoiler
Brand: BMS Original: China
ManualDecoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton
With 6 tons hydraulic decoiler for option
6) YX25-810 Glazed Tile machine control cabinet
Brand: BMS Original: China
Other detailes of YX25-810 Glazed Tile roll forming machine
Suitable for material with thickness 0.5-0.8mm
Shafts manufactured from 45#, Main shaft diameter=φ75mm, precision machined
Motor driving, Gear chain transmission, 14 steps to form.
Main motor=5.5KW, Frequency speed control. Forming speed of approx.5-8m/min
PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,
Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manual in English
After-sale service of glazed tile roll forming machine
1. The warranty of glazed tile roll forming machine
is one year after the client receives the machine.
Within one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories at extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,
Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
